PROPOSED · NOT FOR CONSTRUCTION

Drag to orbit · Scroll to zoom · Right-drag to pan

Cutaway Ceiling LabelsDetail Walk speed 9 ft walls / 10 ft ceiling

Free walk has no collision barriers: you can move through partitions to inspect every area.

Select an element to see its specification and assumptions.

Finish references

Materials and finishes.

Swatches below come from the supplied finish schedule. Screen colours and lighting are indicative.

Rain Cloud

Corian solid-surface counter. Soft mottling and grey veining from the supplied sample.

Specified

Teak fluted panel

MUR Design Salda Square. Fine grooves, raised ribs and stainless edging at the sales counter.

Specified · grain indicative

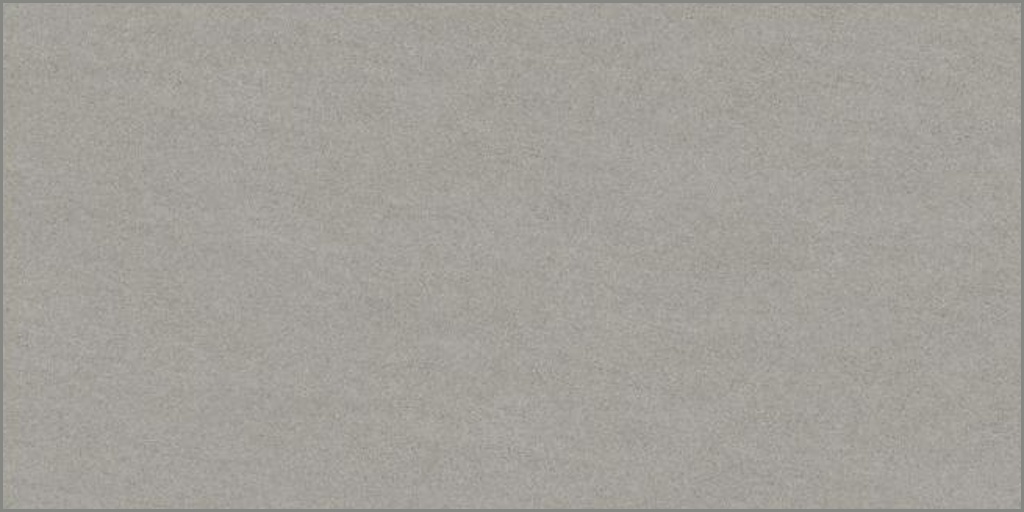

Grey ceramic

Anatolia #1000-0036-2 or approved similar. Sample-matched appearance; 12 × 24 in module shown provisionally.

Tile size to confirm

Grey side walls

Left and right perimeter walls, excluding the round columns and new cooler enclosure. Grey tone is indicative until a sample is selected.

Latest client direction

White service-wall panels

Rear service partition panels remain white. Existing kitchen tile, stainless protection and white FRP remain as specified.

Retained finish direction

Pizza Pizza orange

Columns and lobby face of the cooler partition. Matte finish; colour approximated from the supplied schedule.

Specified

Black exposed ceiling

Retain the exposed character; patch and paint to match existing. Pipes and fittings shown at the agreed 10 ft level.

Height set by client

Selected element

Explore the model

Select the counter, cooler, equipment or wall panels for more detail.

Additional product references: MUR Design · Corian / Willis

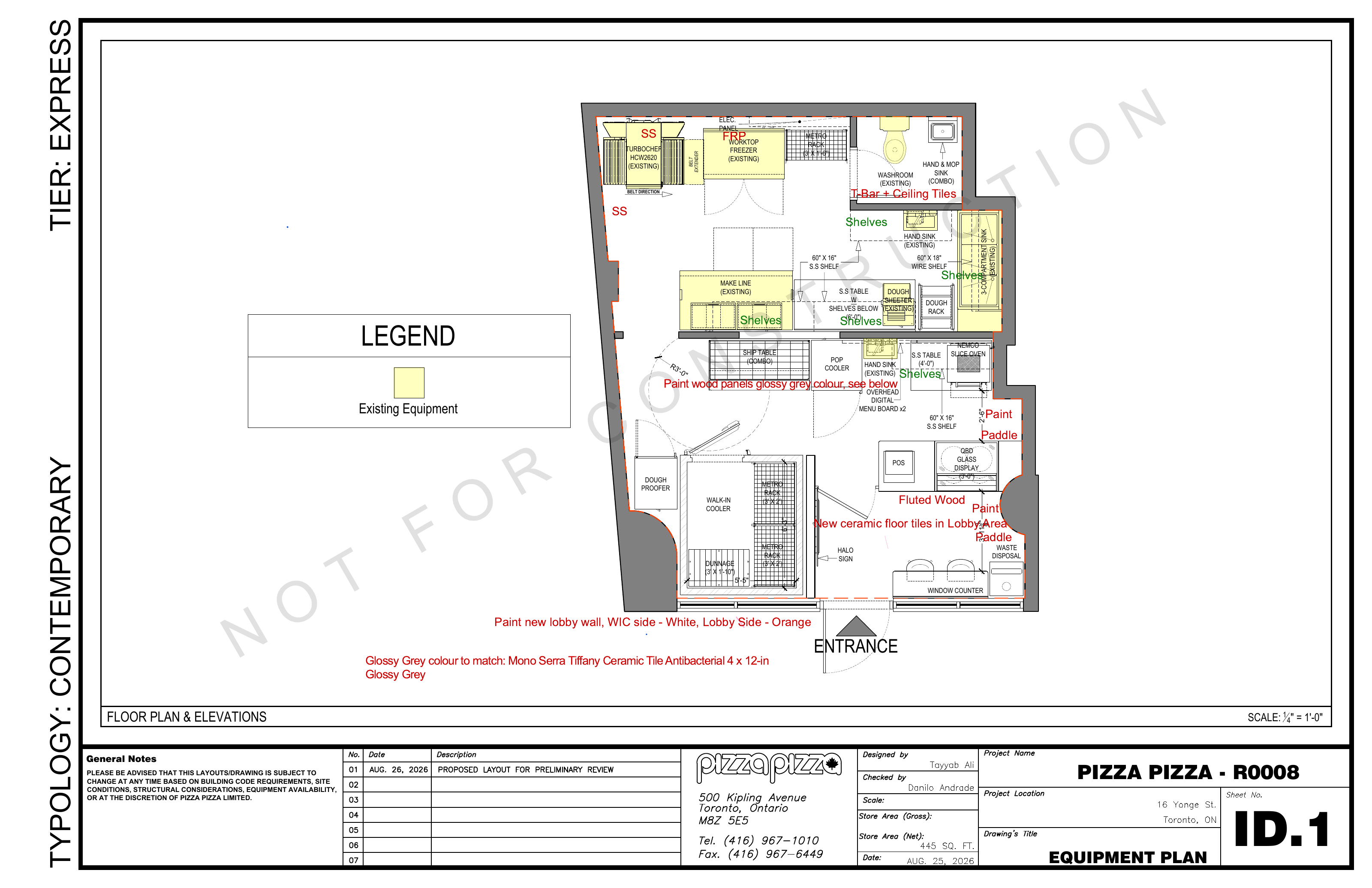

Design basis

What this revision shows.

Grey left and right perimeter walls; round columns and the new lobby-facing cooler wall remain orange.
Cooler at front left, with two 3 × 2 ft racks, dunnage and outward-opening door.
New orange/white enclosure separating the cooler from the lobby.
Sales counter with a recessed 3 ft QBD display, 36 in POS top, teak face, stainless trim and LED strip.
Window counter, two stools, waste station, interior paddles and two suspended digital menu boards above the 4 ft drinks cooler.
Left kitchen access and bounded serving window; closed wall to the right of the drinks cooler.
Retained make line, dough sheeter, conveyor oven, worktop freezer and three-compartment sink in proposed locations.
Stainless protection at the oven, white FRP at the freezer, 60 × 16 in stainless shelves and a 60 × 18 in sink shelf.
Existing exhaust hood and electrical panel shown schematically in their plan zones.
Washroom ceiling closure and schematic hand/mop sink combination.
Existing kitchen door and red curtains omitted, per revised removal scope.

Dimensions used

WIC callout: 5 ft 5 in × 6 ft 3 in.

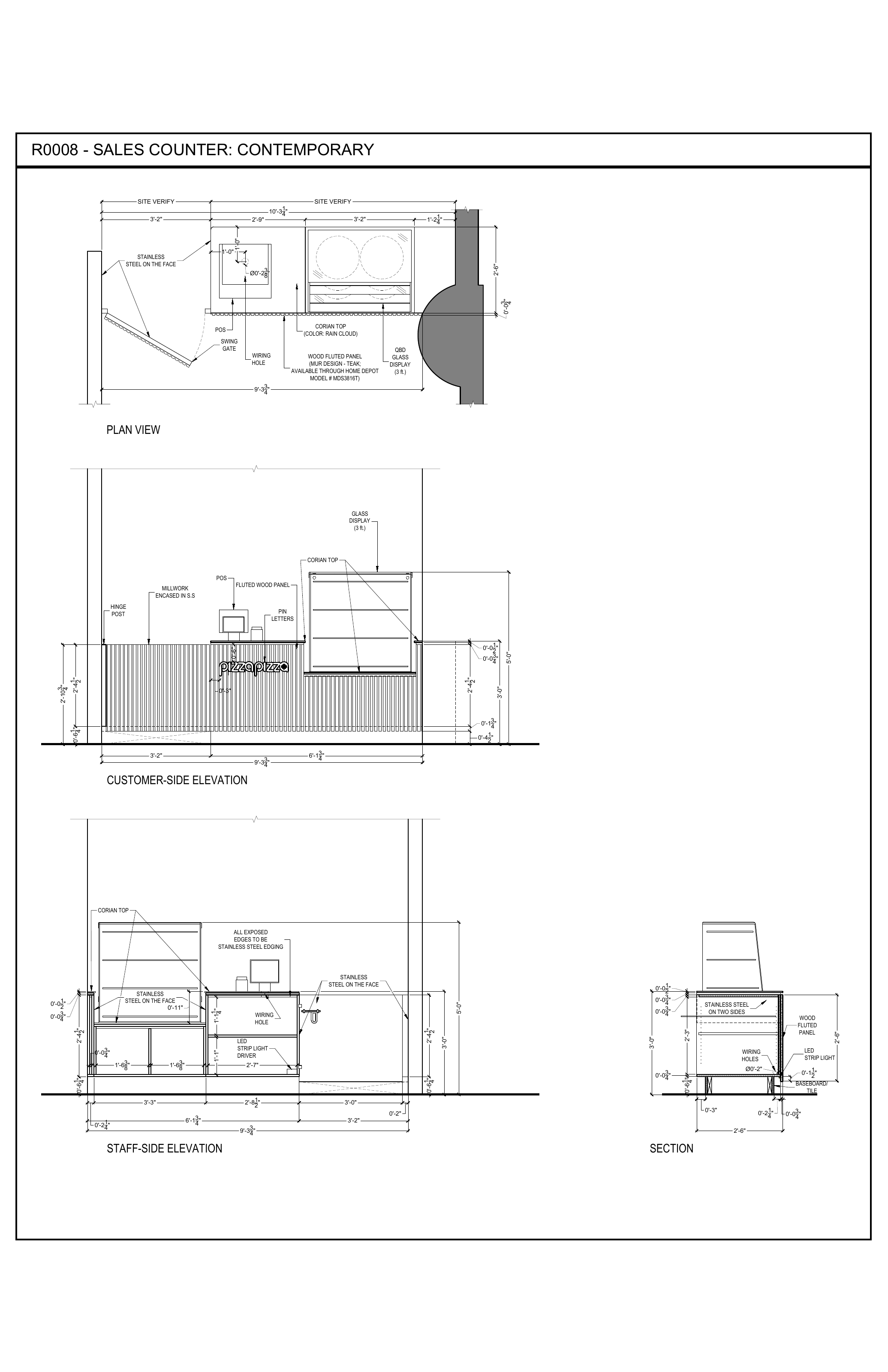

Counter drawing: 6 ft 1¾ in counter + 3 ft 2 in gate bay = 9 ft 3¾ in assembly; depth 2 ft 6 in. Gate fit at the cooler wall and curved column requires site verification.
POS top: 3 ft; display overall height: 5 ft.
Tables: 4 ft and 6 ft. WIC racks: two at 3 × 2 ft; dunnage: 3 ft × 1 ft 10 in.
Walls: 9 ft; open ceiling: 10 ft, per client direction.

Still to confirm

Overall measured footprint, wall offsets, column radii and frontage dimensions. The traced envelope is approximately 373 sq ft using the cooler callout as scale, while the plan title block states 445 sq ft net. These do not reconcile; a dimensioned site survey is needed before treating the overall model as accurate.
Window-counter finish and exact dimensions.
QBD, cooler and other equipment cut sheets. Cooler roof plant is indicative. The pop cooler now uses the scope’s nominal 4 ft width; height, depth and revised service-line spacing need equipment confirmation.
Exact tile module, orange colour formula and sheen samples.
Counter fabrication dimensions and gate clearances, all subject to site verification.
Final decor, menu artwork, ceiling services and lighting locations.

Hood cleaning, exhaust testing, drain cleaning, plumbing repairs and electrical work remain in the written scope. A 3D image cannot verify completion, clearances or code compliance.
